Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.

All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).

These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

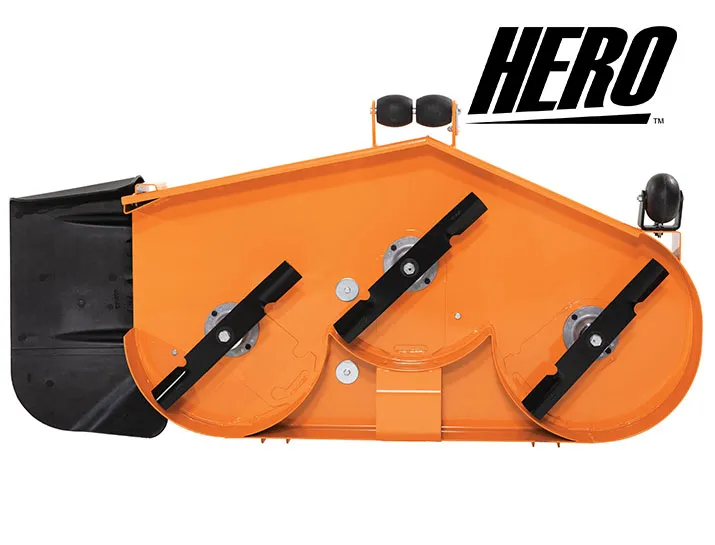

Hero™ Cutter Deck

Command perfection:

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Hero™ cutter deck is an outstanding performer and delivers beautiful results.

The Hero™ Cutter Deck provides the top line power, precision and performance professionals and homeowners demand. This extra-strong, fully fabricated and welded deck features “maintenance-free” aluminum spindles for years of worry-free performance

Strength — Scag’s tough cutter-blade spindles and Dual-Plate construction ensure solid performance and long life.

Productivity — An extra-large discharge opening enhances discharge for even clipping dispersal.

Engines

Kawasaki FR Series Engines

Residential-Grade Power:

Kawasaki® FR Series engines are compact, 90-degree, V-Twin engines that provide an ideal amount of torque and power. Operation is smooth and quiet for years of dependable homeowner operation. Other features include:

• Two-channel forced-air cooling.
• Pressurized lubrication system.
• High-energy, electronic spark ignition.
• Easy-access oil fill.
• 90-degree V-Twin design with overhead V-valve.
• Cast-iron liners.
• Automatic compression release.

Specifications:

• Model: Liberty Z 42
• Length: 68.5″
• Width (chute down): 54.5″
• Width (chute in transport position): 43″
• Height: 41″
• Weight: 595 lb
• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 4″-5″
• Seat: Optional armrest kit available
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Internal Pump: 10 cc
• Internal Motor: 10 cc (Tuff Torq) / 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 42″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck of 2 steel plates
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable Air-Gap: For extended life
