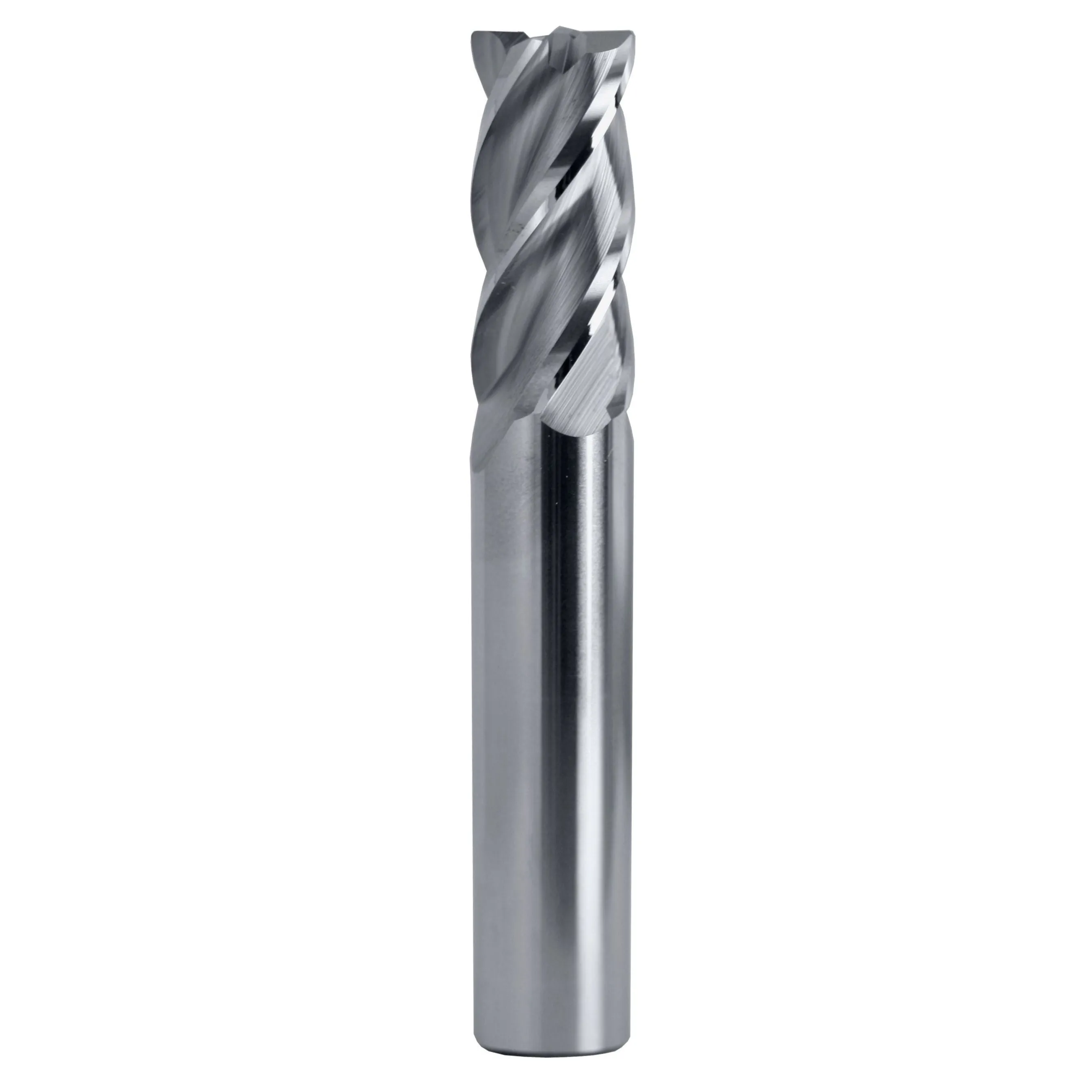

Name: Best Carbide Short Series 20mm 4 Flute End Mill Nano Coated 0.5mm Radius
SKU: 338792

Precision and Durability for High-Performance Machining

The Best Carbide 402 Series 4 Flute Corner Radius End Mill is a high-precision cutting tool engineered for exceptional performance in machining applications. Made from solid carbide and nano-coated for enhanced durability, this short-series end mill provides superior wear resistance, heat resistance, and extended tool life. Designed with a variable helix and offset geometry, it ensures optimal chip evacuation, reduced vibration, and excellent surface finishes. Best Carbide tools continue to set the standard for precision and reliability, making them the top choice for machinists and manufacturers worldwide.

Key Features:

✔ Tool Series – 402.
✔ Material – Solid carbide for exceptional durability and long tool life.
✔ Application – HFC Carbide End Mills – Variable Helix / Offset for enhanced cutting stability.
✔ 4 Flute Design – Optimized for smooth cutting, chip control, and efficient material removal.
✔ Corner Radius – 0.5mm for enhanced edge strength and prolonged tool life.
✔ Cutting Diameter – 20mm for precision machining operations.
✔ Shank Diameter – 20mm for stability and compatibility with various tool holders.
✔ Overall Length (O.A.L.) – 100mm, ideal for short-series machining applications.
✔ Length of Cut (L.O.C.) – 38mm for controlled and accurate material removal.
✔ Nano Coating – Increases wear resistance and enhances cutting performance in tough materials.

Ideal Applications:

✔ High-Performance Milling – Optimized for superior results in a variety of materials.
✔ Precision Hole Drilling – Ensures accurate and consistent hole placement.
✔ Contour Machining – Delivers smooth and precise profiling.
✔ Corner Radius Applications – Reduces stress concentration for enhanced tool strength.

Why Choose Best Carbide?

Best Carbide tools are globally recognized for their quality, precision, and durability. The Best Carbide 402 Series 4 Flute Corner Radius End Mill is an essential tool for machinists and manufacturers who demand superior performance and consistency in their machining operations. Easy to use, highly precise, and built for excellence—Best Carbide delivers the cutting-edge solutions you need.
