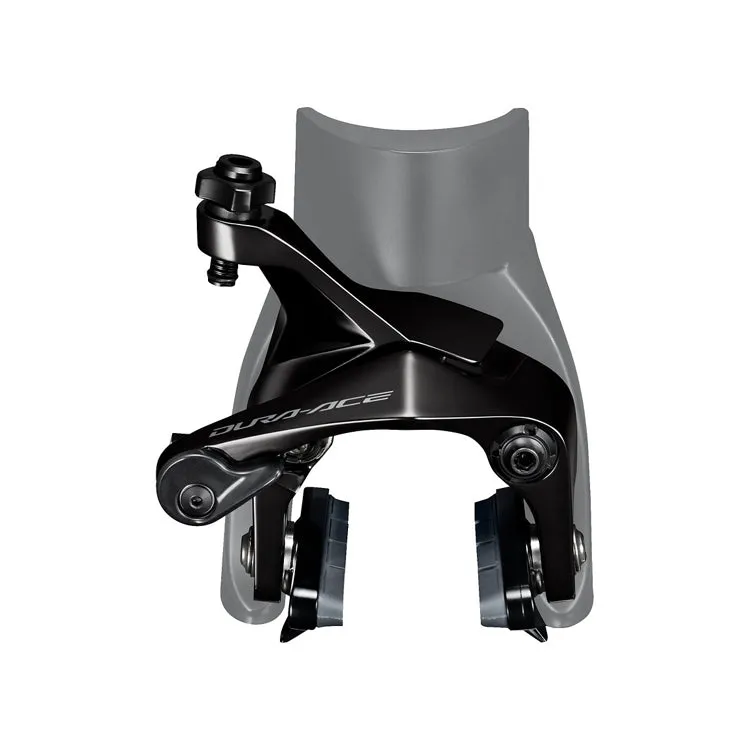

DURA-ACE Direct Mount Front Brake Caliper
BR-R9210-F

With SHIMANO's SLR-EV dual symmetric pivot design, the short-arm DURA-ACE R9200 series caliper brakes employ twin bearings and a roller to realize greater efficiency and deliver superior modulation and stopping power. They are offered in traditional and direct mount options.

FEATURES

Exceptional balance of rigidity, weight and stopping power
Sleek and integrated low-profile caliper design
Maximum tire size: 28C
Lightweight magnesium brake shoe holder

SPECIFICATIONS

MODEL NO BR-R9210-F
SERIES DURA-ACE R9200 Series
Color Series color
Average weight 156 ( /pc)
Brake type Direct mount type
Reach (mm) 51
Shoe angle adjusting ✔
Maximum tire size 28C
Rim width (mm) 20.8 - 28 mm
Titanium cable fixing bolt ✔
Titanium pivot bolt X (fixing screw)
Cartridge shoe holder ✔
Brake shoe_Optional choice R55C4 Carbon R55C4-A Carbon R55CT4
Brake shoe_Standard R55C4
Compatibility SLR-EV
Quick release lever ✔
Tire guide bumpers ✔
